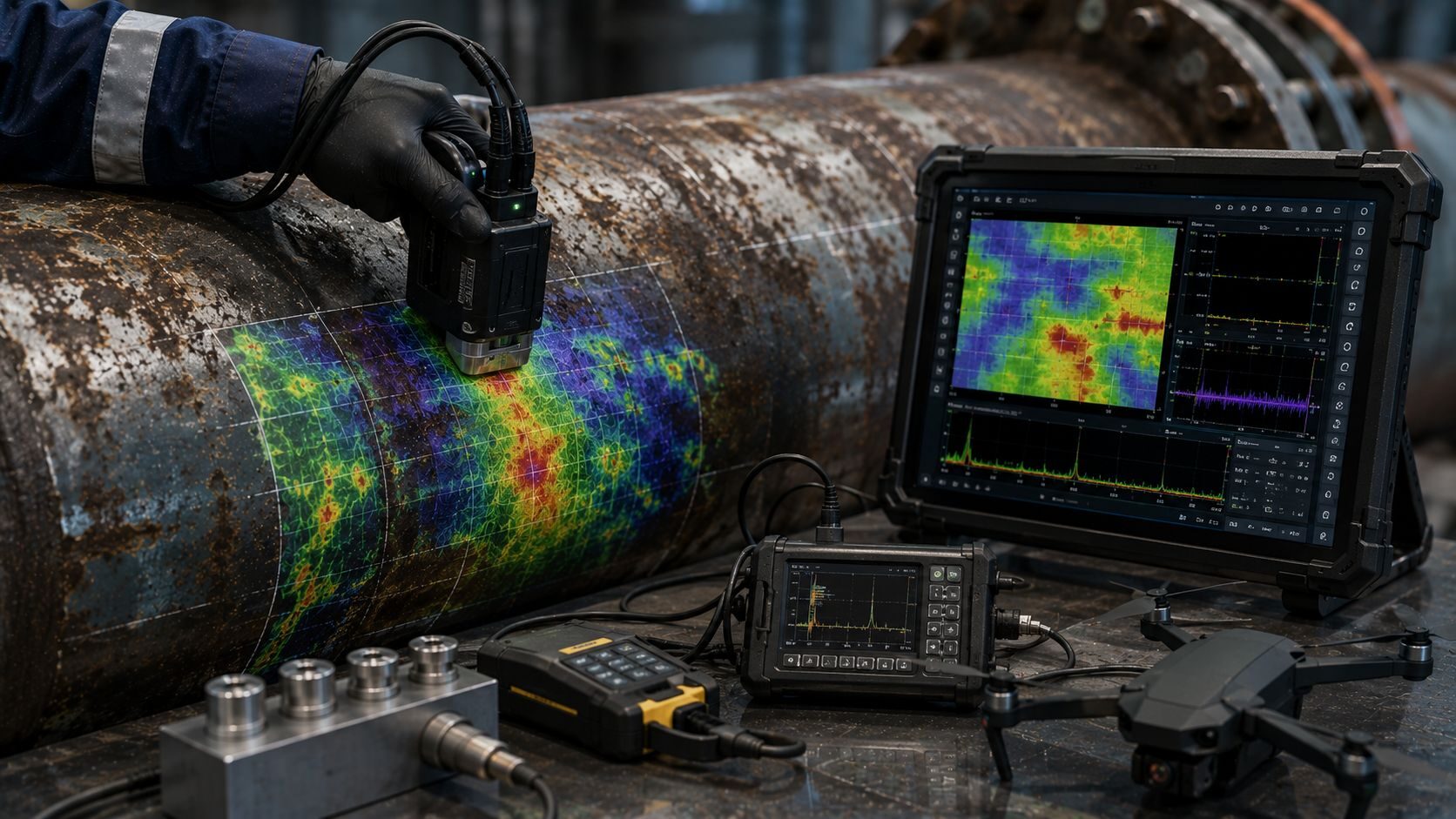

Corrosion Mapping & Advanced NDT

Introduction

Corrosion Mapping & Advanced NDT techniques are essential for assessing wall loss, pitting, erosion, and degradation in critical assets such as pipelines, pressure vessels, storage tanks, heat exchangers, offshore structures, and process equipment. These methods provide high‑resolution data that supports fitness‑for‑service (FFS) evaluations, remaining life assessments, and asset integrity management.

Advanced NDT technologies such as Automated Ultrasonic Testing (AUT), Phased Array Corrosion Mapping, Time‑of‑Flight Diffraction (TOFD), Long‑Range UT (LRUT), Guided Wave Testing, and Digital Radiography enable inspectors to detect corrosion under insulation (CUI), internal wall loss, and hidden defects with exceptional accuracy.

This GTMCS Corrosion Mapping & Advanced NDT program provides deep technical training in corrosion mechanisms, advanced scanning techniques, data interpretation, and compliance with API 570, API 510, API 653, ASME, ISO, and RBI frameworks.

This training course will highlight:

• Corrosion mechanisms & degradation modes
• Advanced UT corrosion mapping techniques
• PAUT corrosion scanning & imaging
• LRUT & guided wave inspection
• Digital radiography for corrosion assessment

Course Benefits

• Gain competency in advanced corrosion inspection
• Interpret corrosion maps & thickness profiles
• Support RBI, FFS & integrity assessments
• Apply API & ASME acceptance criteria
• Strengthen asset integrity & reliability programs
• Prepare for advanced NDT roles

Tools & Technologies Covered

• Automated UT (AUT) corrosion scanners
• Phased Array corrosion mapping systems
• Long‑Range UT (LRUT) & guided wave tools
• Digital radiography (DR/CR)
• Corrosion analysis & reporting software

Practical Workshops

• AUT corrosion scanning practice
• PAUT corrosion mapping & imaging
• Guided wave inspection exercises
• Digital radiography for corrosion detection
• Level II reporting & FFS data preparation

Real‑World Case Studies

• Pipeline internal corrosion mapping
• Pressure vessel & tank wall loss assessment
• CUI detection using advanced NDT
• Offshore structural corrosion evaluation
• Shutdown/turnaround corrosion programs

Industry Relevance

This course is essential for:

• Oil & Gas & Petrochemical inspectors
• Pipeline & integrity engineers
• Mechanical, civil & structural inspectors
• Marine & offshore inspection teams
• Advanced NDT & asset integrity specialists

Future Skills Alignment

• Advanced corrosion detection & mapping
• Digital NDT & data interpretation
• Fitness‑for‑service (FFS) support skills
• Technical reporting & documentation
• Foundation for AUT, PAUT & LRUT specialization

Objectives

By the end of this training course, participants will be able to:

• Perform corrosion mapping using AUT & PAUT
• Interpret corrosion profiles & thickness data
• Apply API 570, 510, 653 acceptance criteria
• Detect CUI, pitting & wall loss accurately
• Prepare advanced corrosion inspection reports
• Support RBI & integrity management programs

Training Methodology

• Instructor‑led advanced demonstrations
• Hands‑on scanning with real components
• Case study analysis
• Scenario‑based flaw evaluation
• Daily quizzes & certification preparation

Organisational Impact

• Improved corrosion detection & accuracy
• Reduced risk of asset failure
• Enhanced compliance with API & ASME
• Stronger asset integrity & reliability
• Better documentation & traceability

Personal Impact

• Higher technical confidence in advanced NDT
• Improved corrosion interpretation skills
• Stronger understanding of degradation mechanisms
• Career advancement in integrity engineering
• Eligibility for advanced NDT roles

Who Should Attend?

• NDT Level II & advanced inspectors
• Integrity & corrosion engineers
• Pipeline & mechanical inspectors
• Offshore & marine inspection teams
• Anyone involved in corrosion assessment

Certificates

Upon successful completion, participants receive a GTMCS Certificate of Completion.
